VanTrust | Avon Landing 1

Owner

VanTrust Real Estate

Location

Avon, IN

Size

336,000 SF

Completion Date

2023

Project Delivery Method

Project Summary

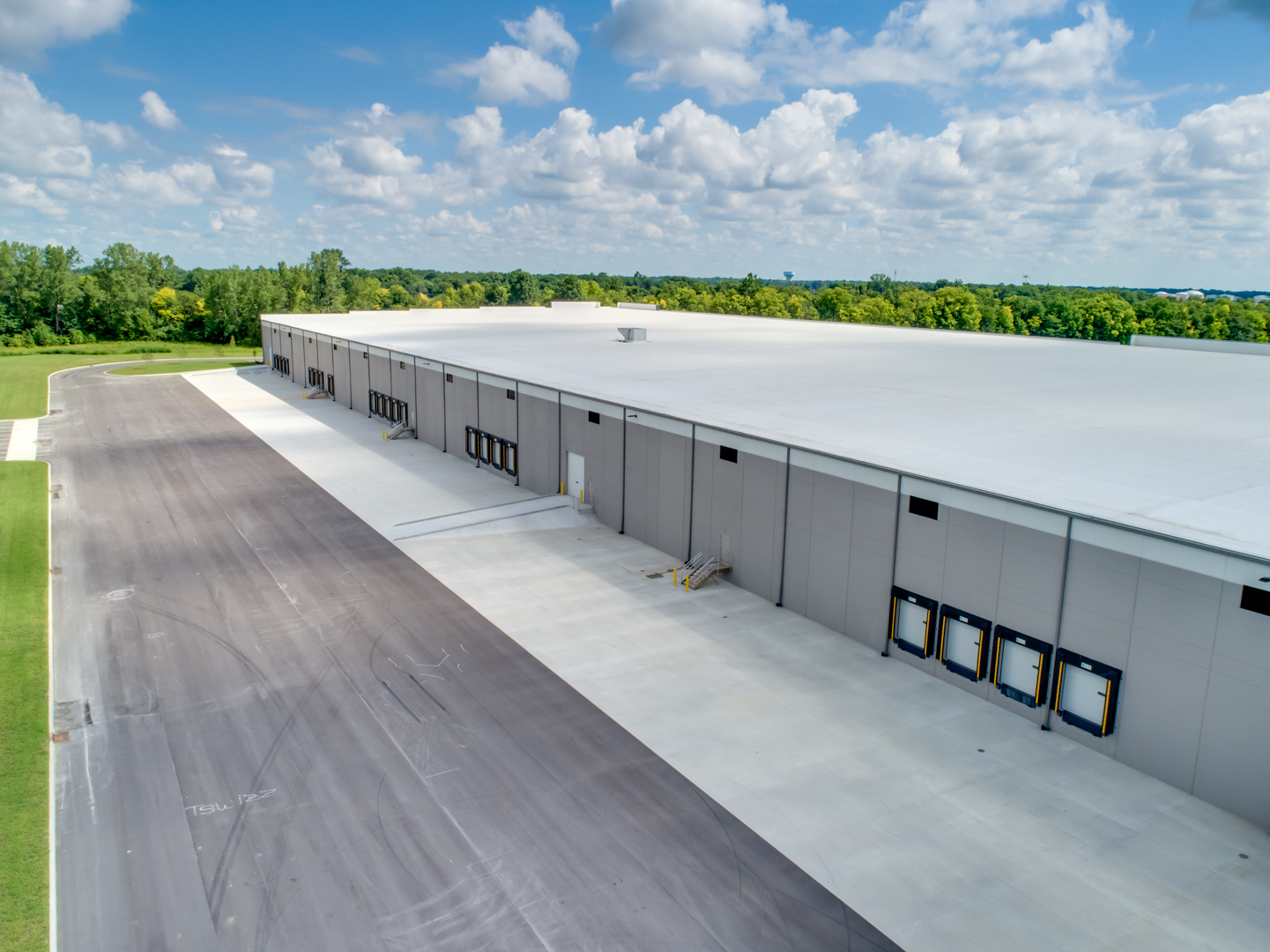

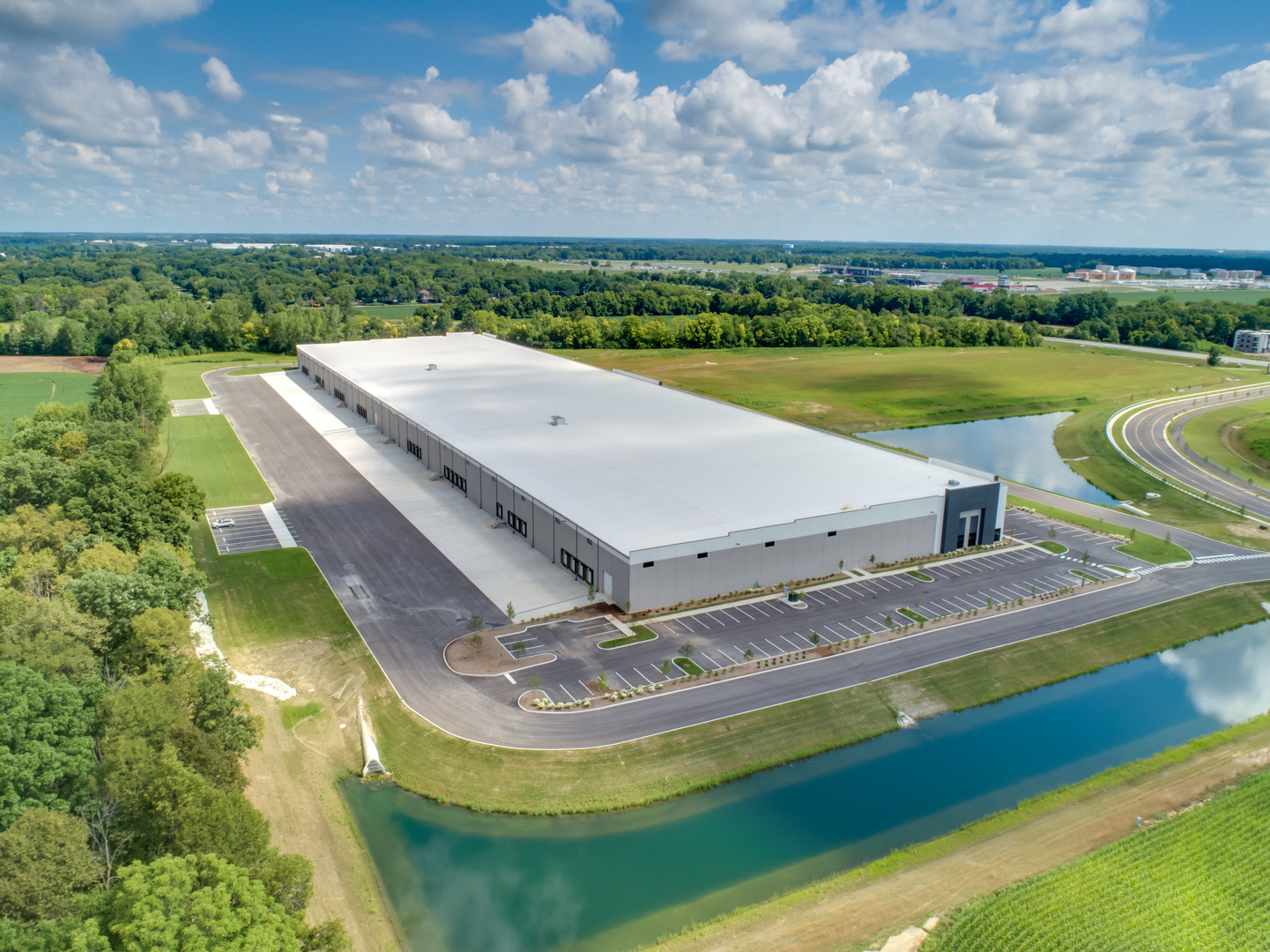

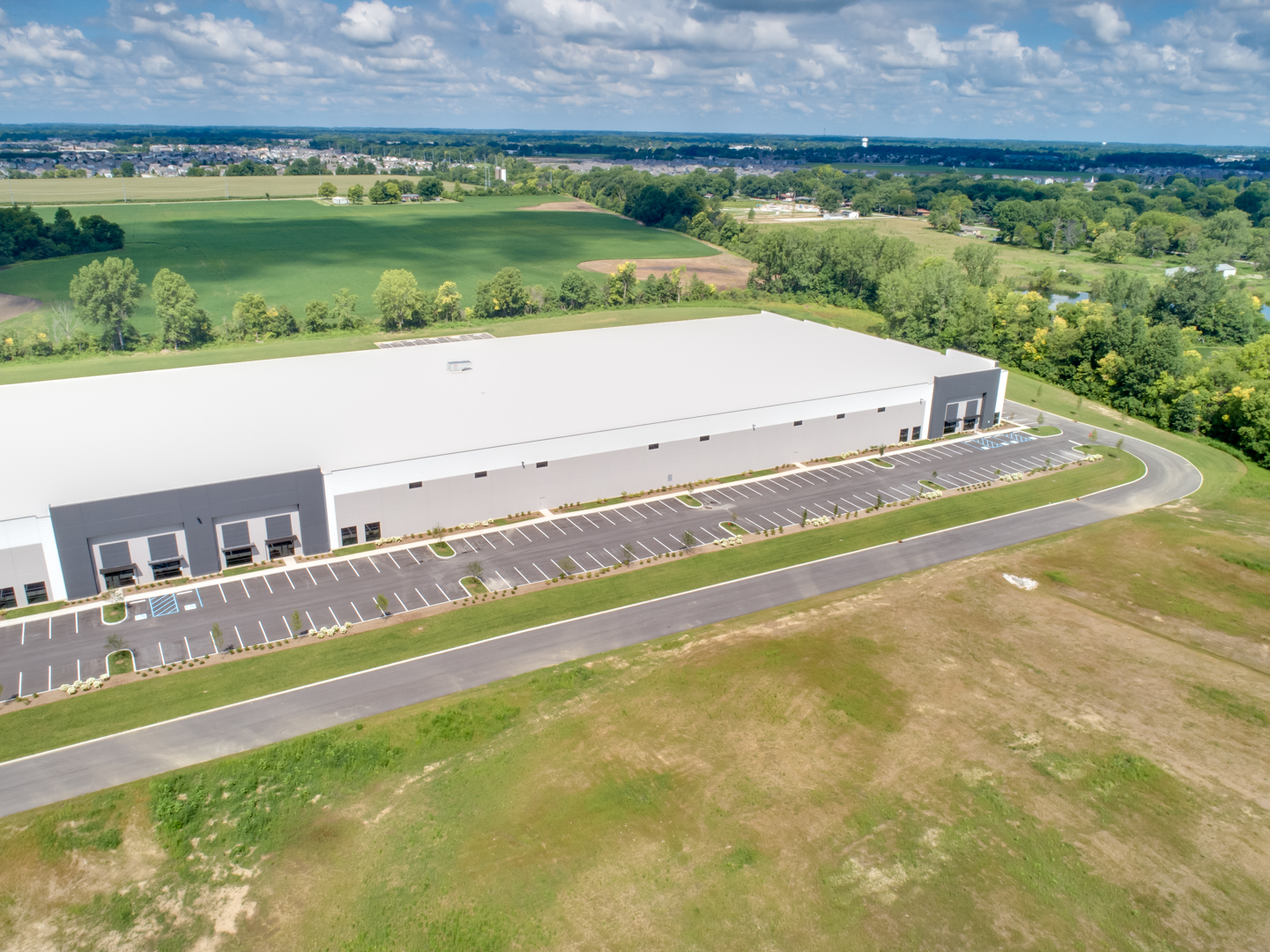

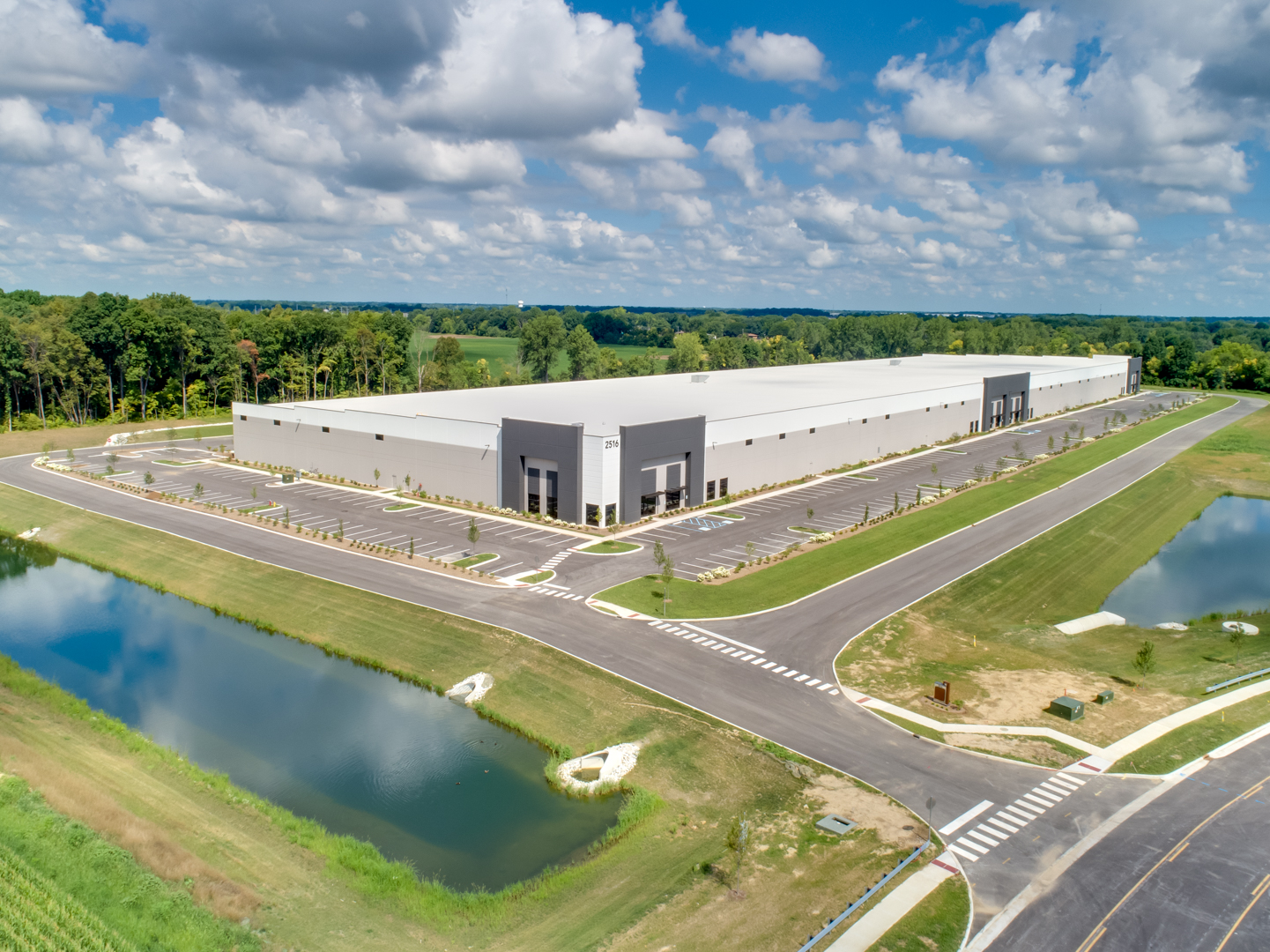

Paul Hemmer Company served as general contractor for Avon Landing Building 1, a 332,934 SF speculative Class A distribution and warehouse facility developed by VanTrust Real Estate for Avon Landings Commerce Park Land, LLC in Avon, Indiana. The project is a nominal 32-foot clear height, unlimited area, S-1 occupancy shell building constructed with insulated precast concrete wall panels on a Butler Manufacturing structural steel framing system. The building features an extensive dock loading configuration across both long elevations, a multi-tone precast panel exterior with aluminum storefront glazing, and a full complement of site improvements serving the Avon Landing industrial park.

Key Features

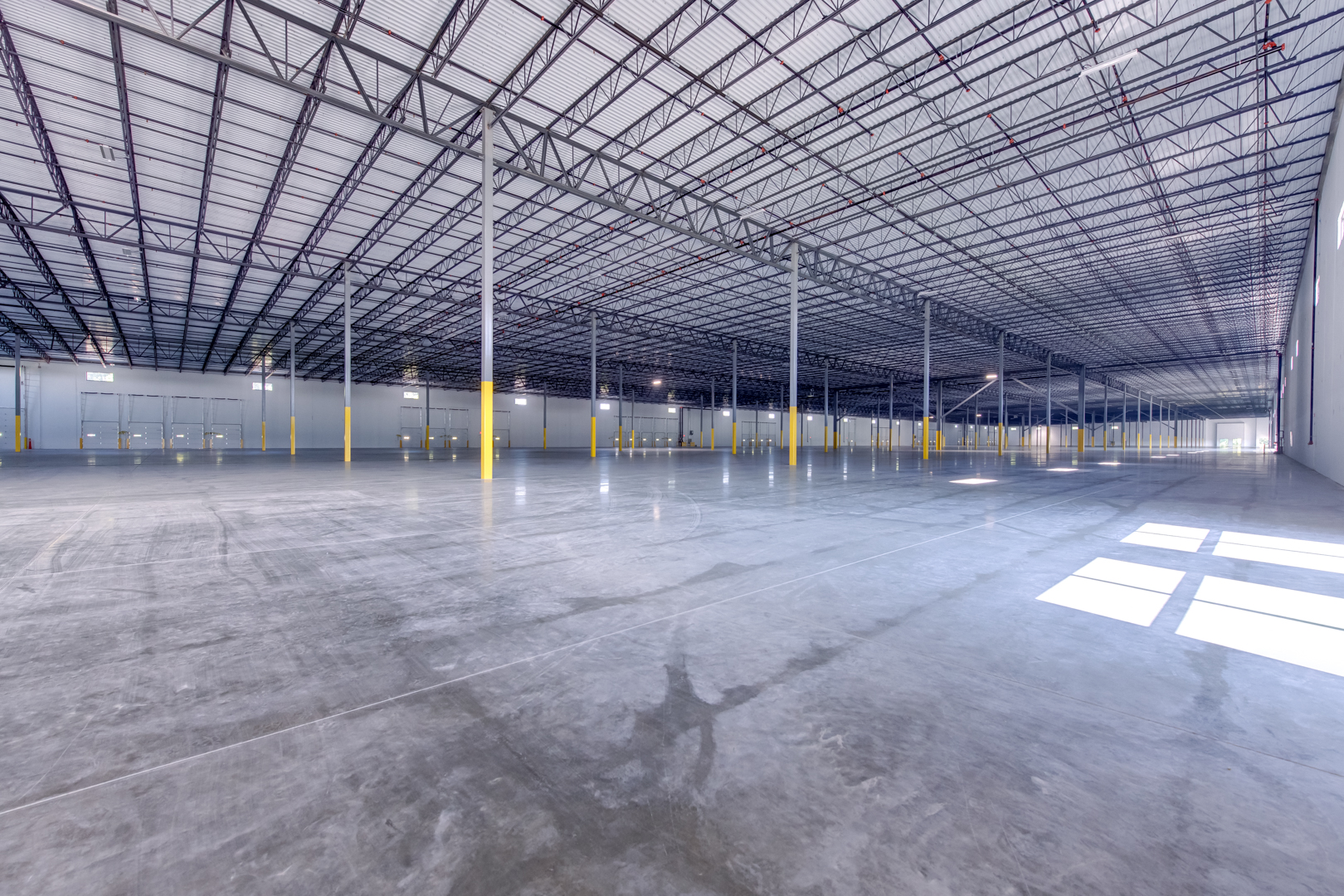

332,934 SF unlimited area shell building at 1,106 ft × 300 ft, with nominal 32-ft clear height and column spacing of 54'-0" typical bays and 60'-0" speed bays

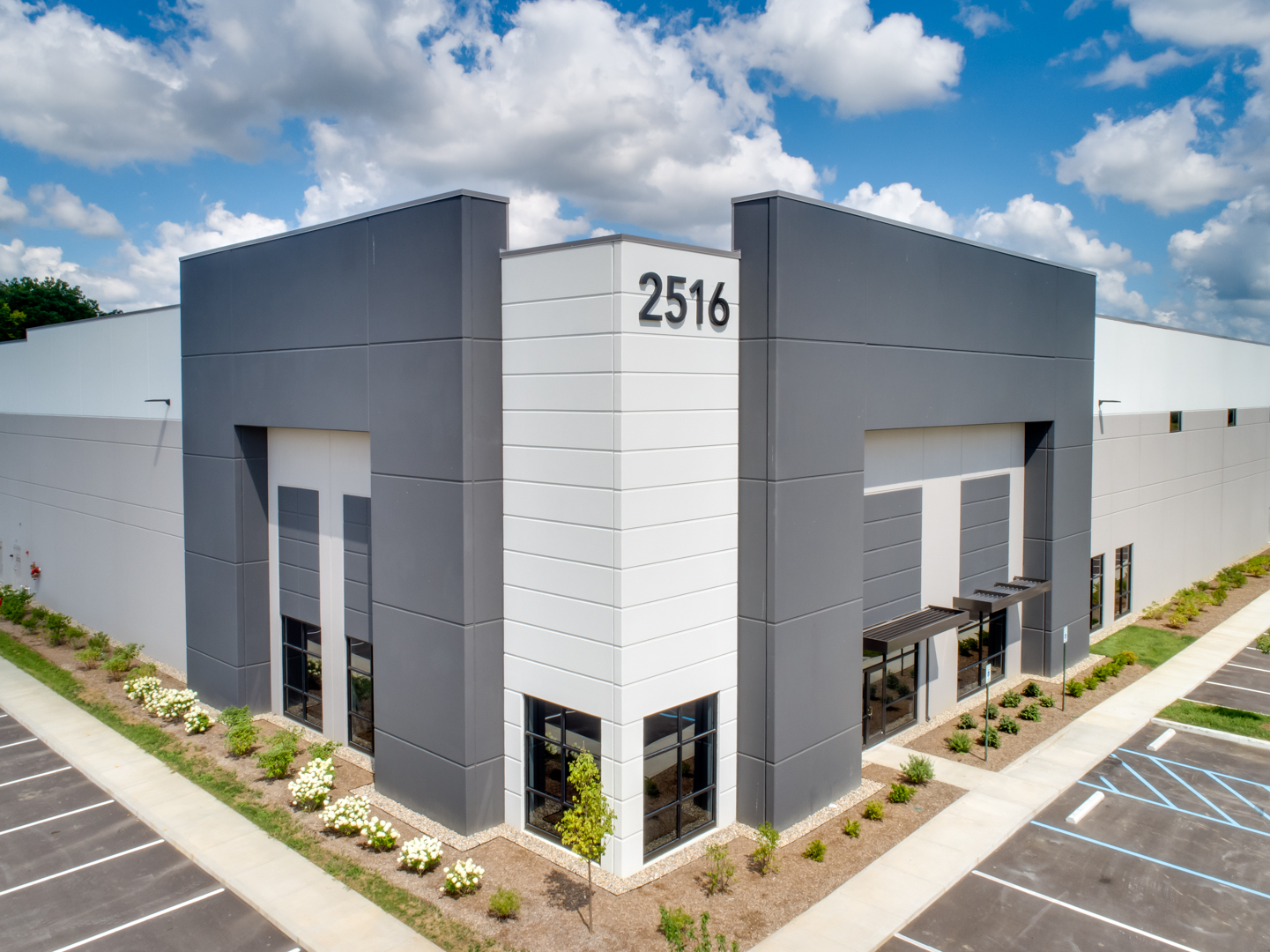

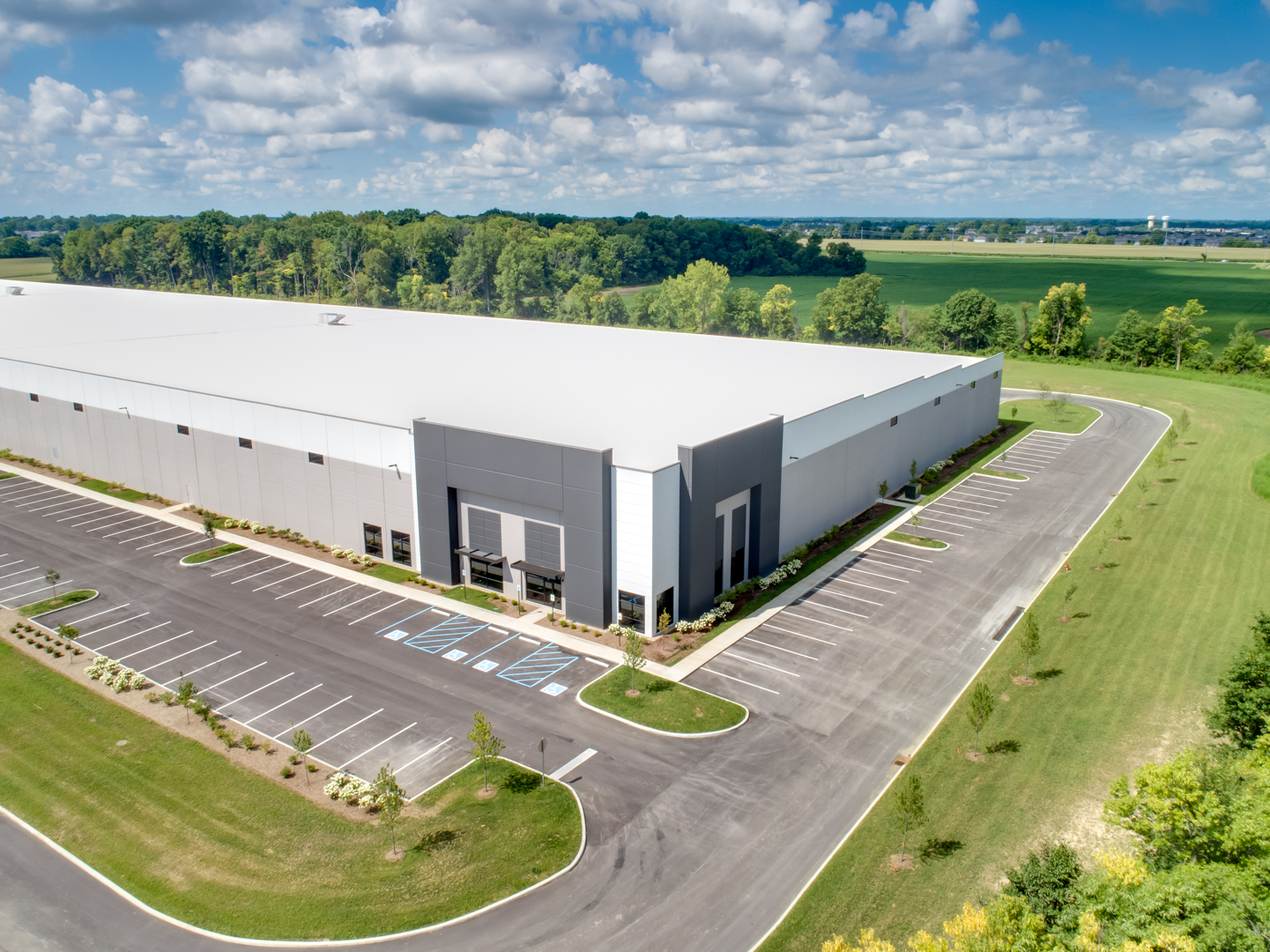

Multi-elevation exterior featuring three-tone Sherwin Williams paint scheme, Type A horizontal reveals at 15" OC, and dark bronze anodized aluminum storefront framing
Insulated precast concrete wall panels (nom. 12' wide × 9.5" thick, min. R-12.95, heat capacity 14.40) manufactured by ATMI-Indy, with sealant on both sides of all joints
ESFR fire suppression system (NFPA 13, electrically supervised) with 1-hour rated fire pump room enclosure; 400-ft exit access travel distance throughout the open warehouse floor

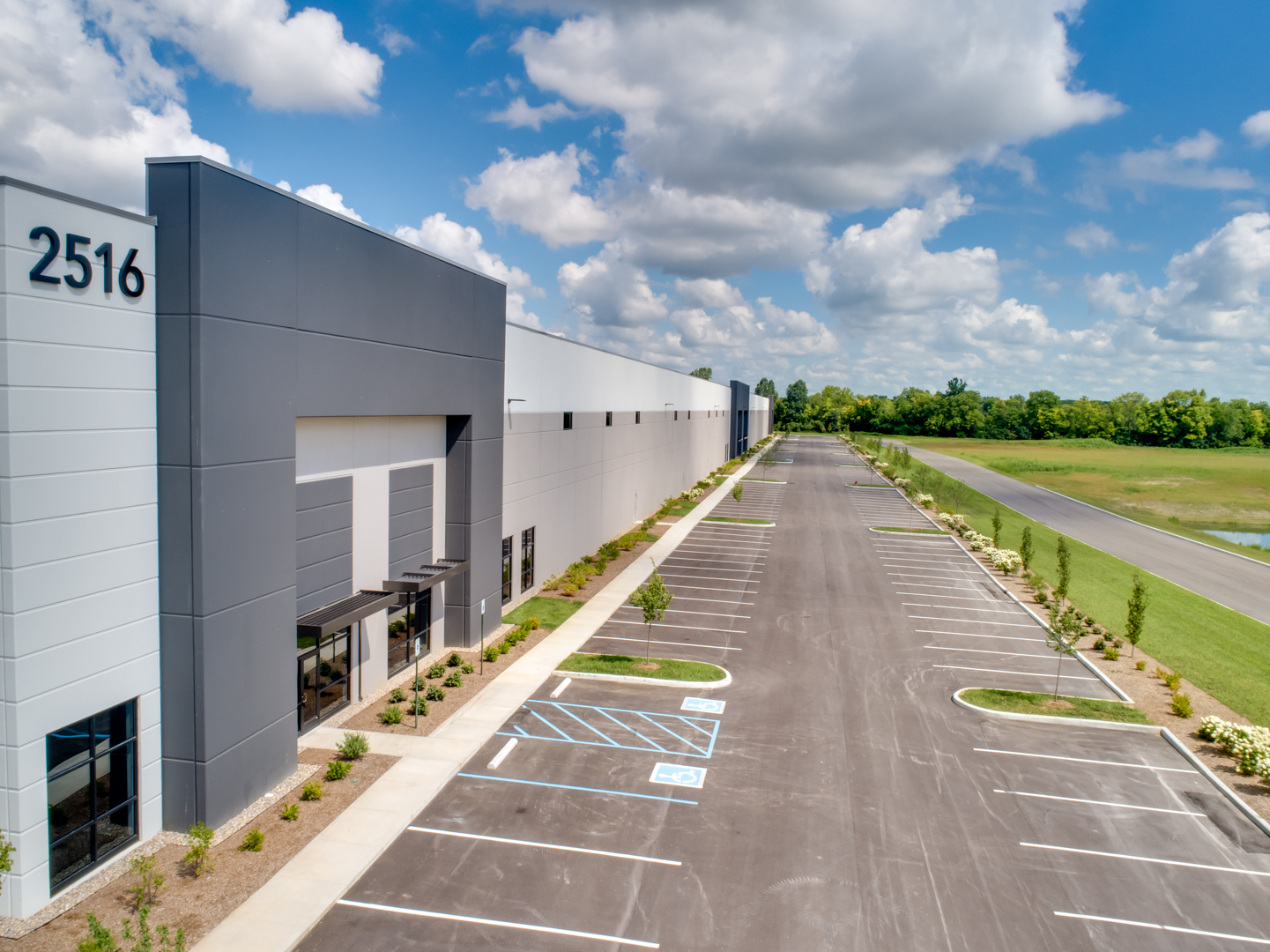

Pre-engineered metal canopies and sunshades at building entries on the north and south dock elevations, with 1" insulated glazing in aluminum storefront framing at entry bays
